Single Color Printing Machine

Profile Printing Line

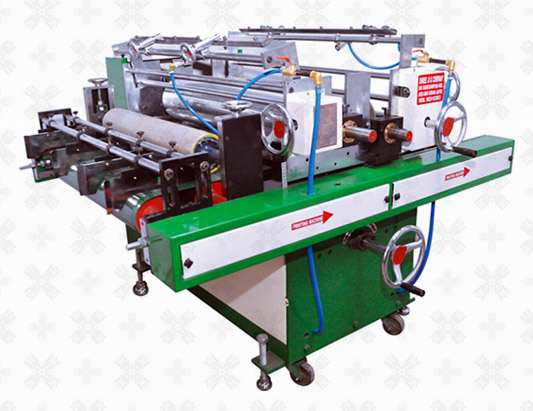

Single Color Printing Machine

Technical Parameters

Printing Width in mm - 300, 760, 1000, 1250 mm
Printing Speed - 5-40 mtr/min
Profile/Board Thickness - 2-50 mm
Electric Power - 2.25 HP
Dimensions in mm - 1600 x 1550 x 1300 mm
  • Single Color printing machine, easy & simple to operate, time and labor saving, very fine quality of printing, no rejection, no maintenance. The machine is running worldwide.
  • This printing machine can be used for PVC door profiles, veneer board, plastic PVC extruded sections, ceiling panel, wall panel, foam board, ACB, WPC, MDF etc.
  • The feeding speed can be adjusted coupled with the printing speed. Machine can run at a very high speed and gives uniform printing.
  • The printed work piece’s face is up warded, so that the print man can be vision the printing quality which controlled the printing quality effectively.
  • Easy for replacing the PU roller & printing roller which is just to disassembly the locking bushing for PU & printing roller & replaced, time & labor saving. This machine is designed with easy dismantle structure to make convenient clean and maintenance.
  • Safe, convenient & rapid system for ink recycling without any wastage.
  • Printing machine is available in various effective printing width and sizes. We can develop machine as per customer specification apart from below given sizes and application.
Get One Stop Complete Solution

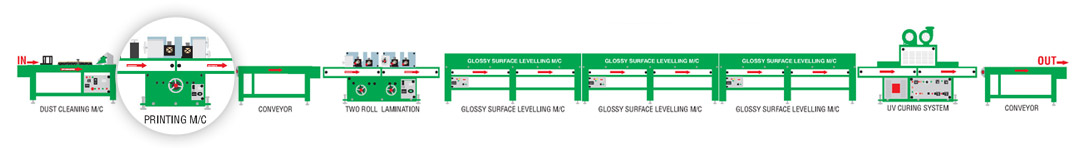

Complete PVC Door Profile Printing Line
Profile Printing Line
Profile Printing Line
